Depth: Superslim (less than 45mm)
Installation type: Built-in, Corner
Net weight (kg): 57
Option: standard option
Slip-resistant base (anti-slip)
Waste diameter (mm): 90

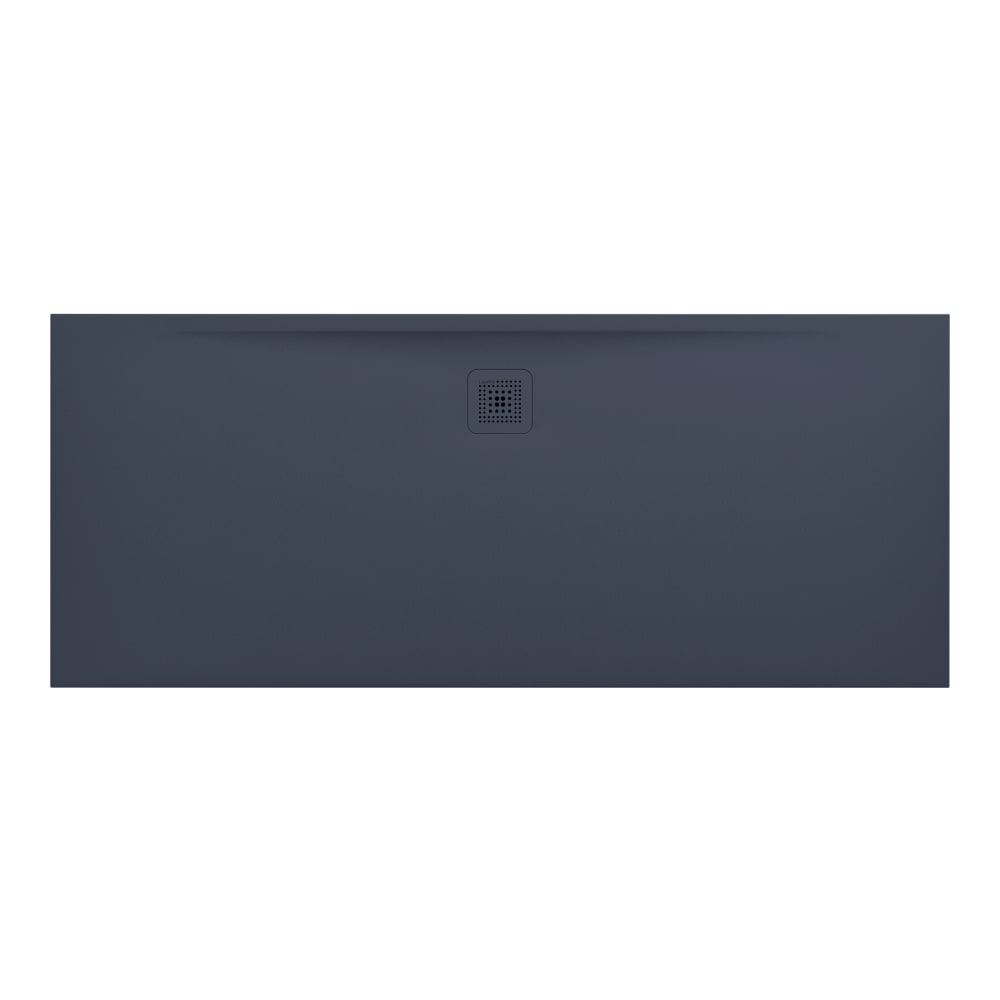

Rectangular shower tray made of Marbond (Gel Coat surface matt, with structure) with Antislip, Class C (DIN 51097).
Removable siphon cover, stainless steel for floor-even installation or on floor installation.
Mounting box incl. waste, Ø 90 mm without cover (pre-assembled), water drain connection possible left or right hand side: type DN 50, height 100 mm, order no. H290043, type DN 40, height 75 mm, order no. H290033, waste DN 50, Ø 90 mm without cover, order no. H295127
Mounting box, water drain connection possible left or right hand side: type DN 50, height 100 mm, order no. H290041, type DN 40, height 75 mm, order no. H290031
Installation frame, adjustable height between 85-160 mm, order no. H298442, 85-175 mm, order no. H295703
Antinoise set for the frame installation to fulfil.
DIN 4109 and SIA 181: frame height 85-160 mm, order no. H298989, frame height 85-175 mm, order no. H298991
Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from Laufen. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
LAUFEN pro is a comprehensive bathroom range, which offers the ideal solution for every spatial situation and requirement and also reflects the building values of the current generation. Industrial design is the modern answer to the once revolutionary idea that everyone has a right to enjoy beautiful forms. Good design is now no longer a right reserved for the most affluent customers. Modern methods of industrial production and designers such as Peter Wirz of Vetica, who put optimum manufacturing feasibility at the forefront of their creative processes, make such sanitary ware ranges as LAUFEN pro possible. This does not just benefit the designer, more importantly, it also benefits the custo
