ILBAGNOALESSI

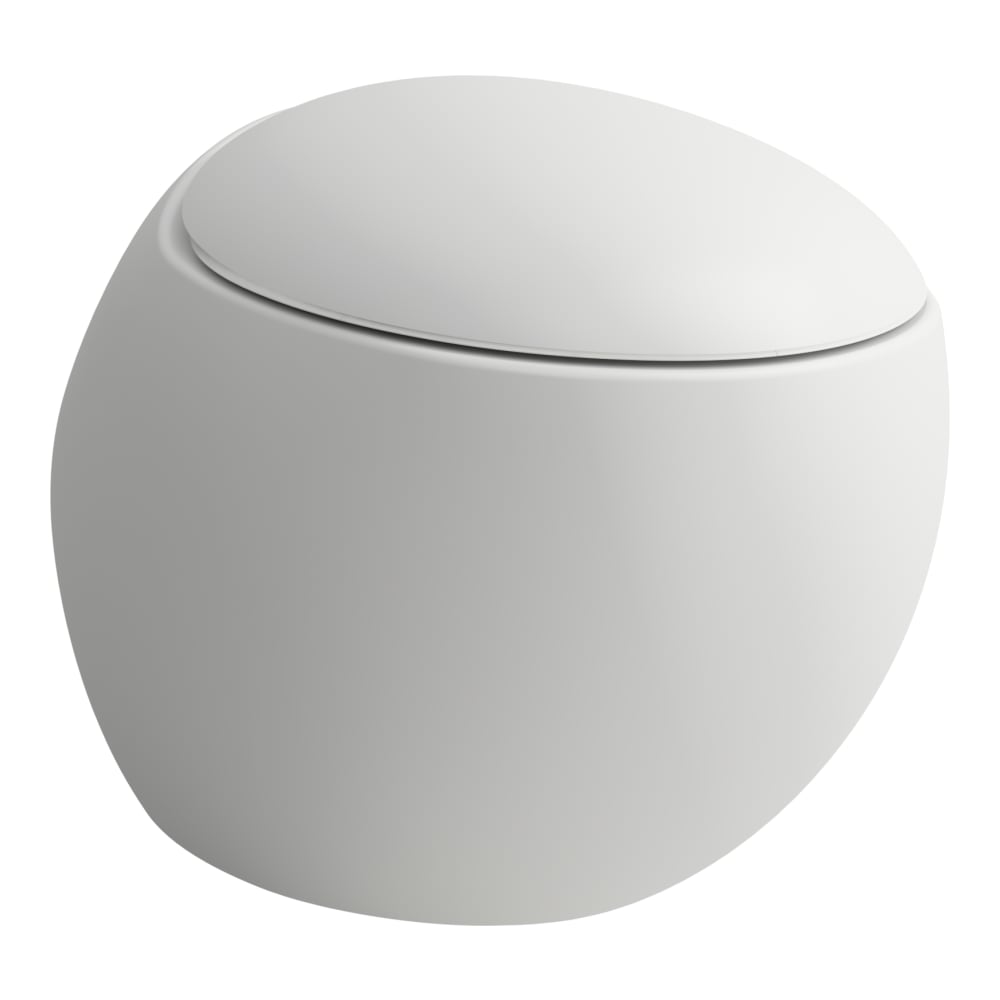

Wall-hung WC 'rimless', washdown, without flushing rim

Article-No.: H8209714000001

Dimensions: 585 x 390 x 355 mm (length, width, height)
Color:
000 - standard option
Download Data Sheet (pdf) Medidas View all dimensions
3.38 l

TECHNICAL SPECIFICATIONS

dropdown_arrow

Average water consumption (L.): 3.38

Fixing kit: New EasyFit 2.0 included

Flushing system: Washdown

Installation type: Wall-hung

Option: standard option

Outlet type: Horizontal

Rim type: Rimless

Shape: Round

Style: Opulent

Water Inlet System: Back Inlet

TECHNICAL DESCRIPTION

Wall-hung WC rimless washdown Laufen-ILBAGNOALESSI, sanitary ceramic for concealed cistern, EN 997, EN 33, min. 5/3-l-flush, dimensions 390 x 585 x 400 mm, concealed trap, concealed fixation.
Special feature: Surface refinement LCC (only white), rimless, concealed surfaces directing water are fully glazed throughout, vacuum checked.
Further options / accessories: WC seat and cover with automatic lowering H892971

MOUNTING ACCESORIES INCLUDED

Laufen EasyFit 2.0 system M12, order no. H893828

MOUNTING ACCESORIES EXCLUDED

Antinoise set, order no. H892695
Stone screw fixing set M12

TECHNICAL DOCUMENTS

dropdown_arrow

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.

2D

3D
