THE NEW CLASSIC

Article-No.: H2208520000001

Freestanding bathtub, made of solid surface material Sentec

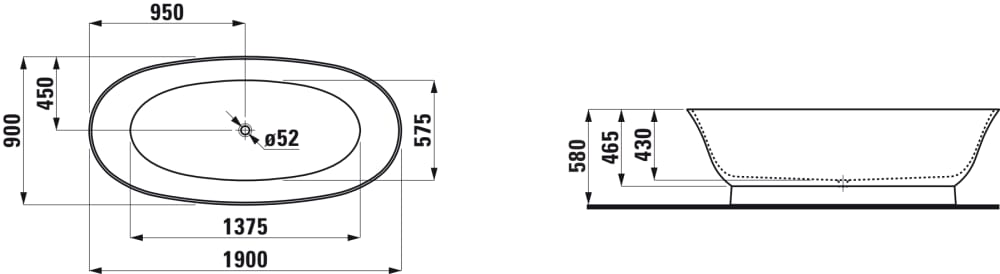

1900 x 900 x 580 mm (length, width, height)
000 - standard option

TECHNICAL SPECIFICATIONS

Installation type: Freestanding

Material: Sentec

Net weight (kg): 90

Option: standard option

Shape: Oval

TECHNICAL DESCRIPTION

Freestanding bathtub made of Sentec solid surface material with overflow slot incl. click-clack waste and chrome cover 10 cm free space for installation, no cut-out required in the floor. Charge 000 – without whirl system

MOUNTING ACCESORIES INCLUDED

click-clack waste with chrome cover, order no. 29510.7, Flex-pipe 1m, order no. 29443.9

Compatible products

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from Laufen. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.

2D

3D

THE NEW CLASSIC

A collection of perfectly shaped innovations for thebathroom. The New Classic radiates the practicality of the harmonious form and combines it with contemporary style.
