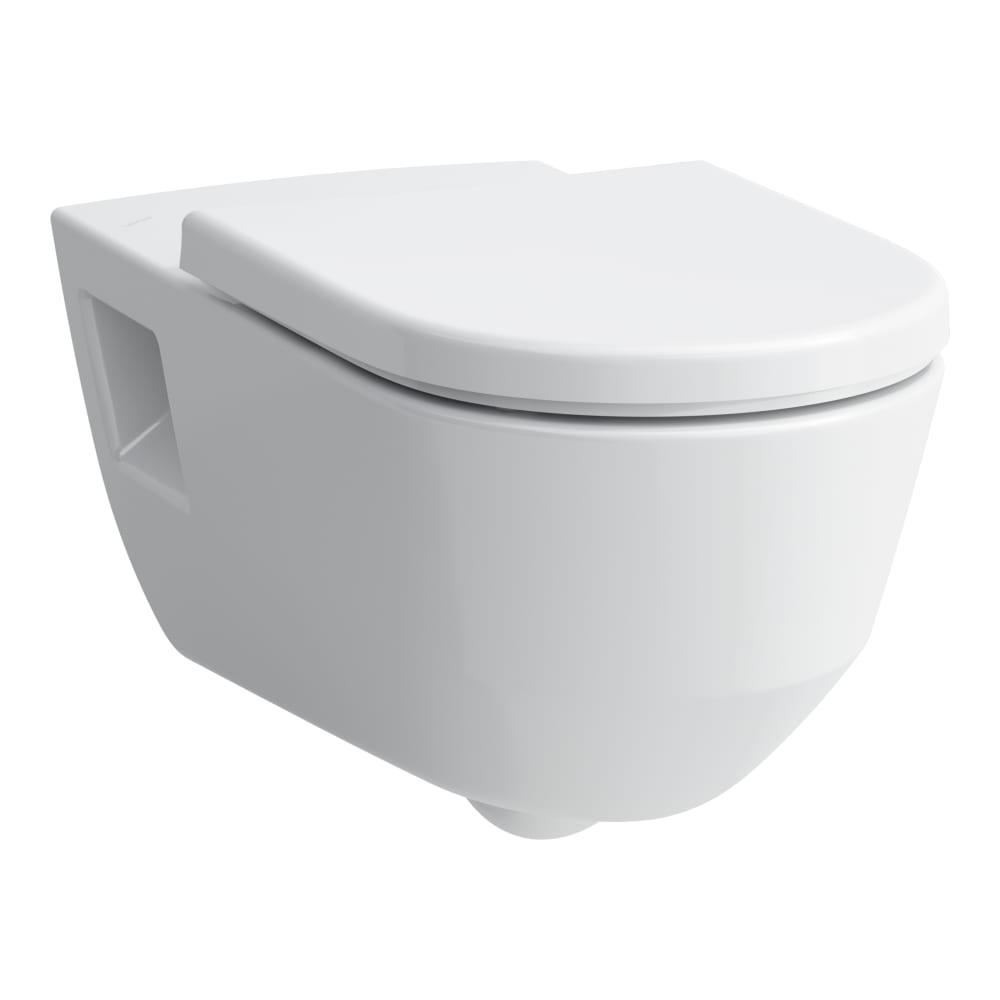

Wall-hung WC 'liberty', washdown, rimless, barrier-free
Article-No.: H8219600000001
TECHNICAL SPECIFICATIONS
Average water consumption (L.): 3.72
Flushing system: Washdown
Installation type: Wall-hung
Option: standard option
Outlet type: Horizontal
Rim type: Rimless
Shape: Round
Style: Neutral
Suitable for people with reduced mobility
Water Inlet System: Back Inlet
TECHNICAL DESCRIPTION
Wallhung WC rimless, washdown LAUFEN PRO LIBERTY,
sanitary ceramic, for concealed cistern
EN 977, EN 33, 6/3-l-flush, dimensions 360 x 700 x 335 mm
concealed trap, with lateral niches
Special feature: rimless, concealed surfaces directing water are fully
glazed throughout, vacuum checked
Further options / accessories: WC seat 898951, WC seat and cover
898950, 898960
Order no. 821960
TECHNICAL DOCUMENTS
Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
LAUFEN PRO LIBERTY
Laufen pro liberty is an interesting proposition for private homes, hospitals, nursing and residential homes for the elderly. With its minimalist lines, it is perfectly matched to the Laufen Pro bathroom suite series and, compliant with the standards, considerably increases comfort in bathroom use. Laufen pro liberty complies with DIN 18040 and SIA 521 500.
