MEDA

Wall-hung WC Silent flush/'rimless', washdown, advanced, without flushing rim

Article-No.: H8201100000001

Dimensions: 540 x 360 x 355 mm (length, width, height)
Colour:
000 - standard option
Download Data Sheet (pdf) Medidas View all dimensions
3.5 l

TECHNICAL SPECIFICATIONS

dropdown_arrow

Average water consumption (L.): 3.5

Back-to-wall

Fixing kit: Included

Flushing system: Washdown

Installation type: Wall-hung

Net weight (kg): 22

Option: standard option

Outlet type: Horizontal

Rim type: Rimless Vortex

Shape: Round

Water Inlet System: Back Inlet

TECHNICAL DESCRIPTION

Wall-hung WC rimless washdown, silent flush Laufen-MEDA, sanitary ceramic for concealed cistern, EN 997, EN 33, min. 4,5/3-l-flush, dimensions 360 x 540 x 355 mm, concealed trap, concealed fixation pre-installed.
Special feature: rimless, silent flush (Vortex Flushing Technology), concealed surfaces directing water are fully glazed throughout, vacuum checked.
Further options / accessories: Surface refinement LCC (only white), WC seat and cover 89111.2, WC seat and cover with automatic lowering 89111.3

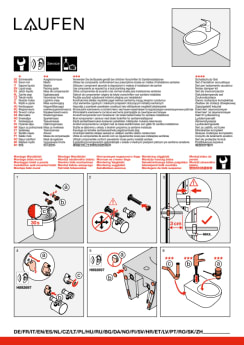

MOUNTING ACCESORIES INCLUDED

Laufen EasyFit 2.0 system M12, order no. H893827
Antinoise set, order no. H892697

MOUNTING ACCESORIES EXCLUDED

Stone screw fastening kit M12

TECHNICAL DOCUMENTS

dropdown_arrow

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from LAUFEN. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.

2D

3D
