TECHNICAL SPECIFICATIONS
Basin capacity (l): 7
Bowl depth (mm): 100
Bowl length (mm): 484
Bowl position: Central
Bowl width (mm): 315
Installation type: Vanity, Wall-hung
Internal Shape: Rectangular
Material: Saphirkeramik
Number of fixing points: 2
Option: one tap hole, centre
Overflow type: Standard
Shape: Rectangular
Taphole configuration: 1 taphole in the middle
TECHNICAL DESCRIPTION
Charge 104 – 1 centre tap hole
MOUNTING ACCESORIES EXCLUDED
Mounting set M10 x 140 mm, order no. 89988.2
TECHNICAL DOCUMENTS

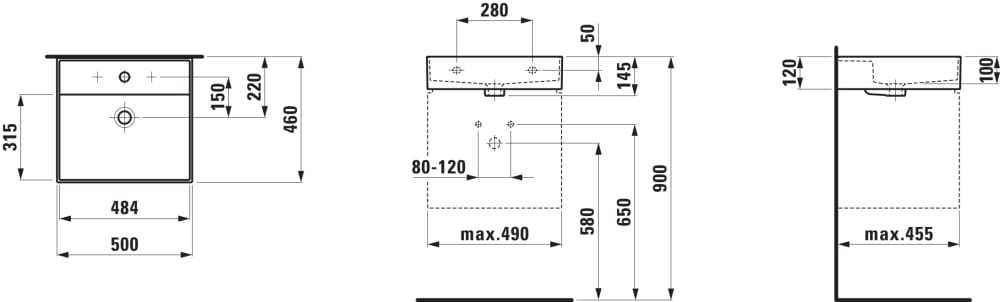

Download the CAD (2D, 3D) files of this product in different formats. | ⚠ Caution: CAD files should not be used for computer-controlled (CNC) cutting of countertops or similar and are for space-planning & room rendering purposes only. Upon request cut-out templates are available from Laufen. All drawings contain the necessary measurements (mm) which are subject to standard tolerances. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished product.
